SIM800 Module GPRS Module Price GSM GPRS Development Board

FOB Reference Price:Get Latest Price
  • 10 - 499 Pieces
    $13.40
  • 500 - 999 Pieces
    $12.86
  • 1000 - 9999 Pieces
    $12.60
  • >=10000 Pieces
    $12.33
Lead Time:
Quantity(Pieces) 1 - 500 501 - 2000 >2000
Est. Time(days) 3 4 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples - $12.86 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
D/C:
121
Package:
Anti-static bag, Anti-static bag,can desigin package too
Model Number:
OKY2223-3
Type:
LOGIC ICS
Brand Name:
OEM
Place of Origin:
Guangdong, China
Sample order:
Welcome
Factory Outlet:
Yes
OEM/ODM:
Available
Delivery time:
1-3 days
Customize with an own brand:
Customize with an own brand
Customize package with my own brand:
Welcome
GSM GPRS Development Board:
SIM800
User:
Students,Engineers etc.
Warranty:
2 years
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Different package at optional:
1. Retailing Package:paper box
2. Retailing Box package design according to your requirement( Order > 1000PCS)
Port
SHENZHEN
Lead Time :
Quantity(Pieces) 1 - 500 501 - 2000 >2000
Est. Time(days) 3 4 To be negotiated
Product Description

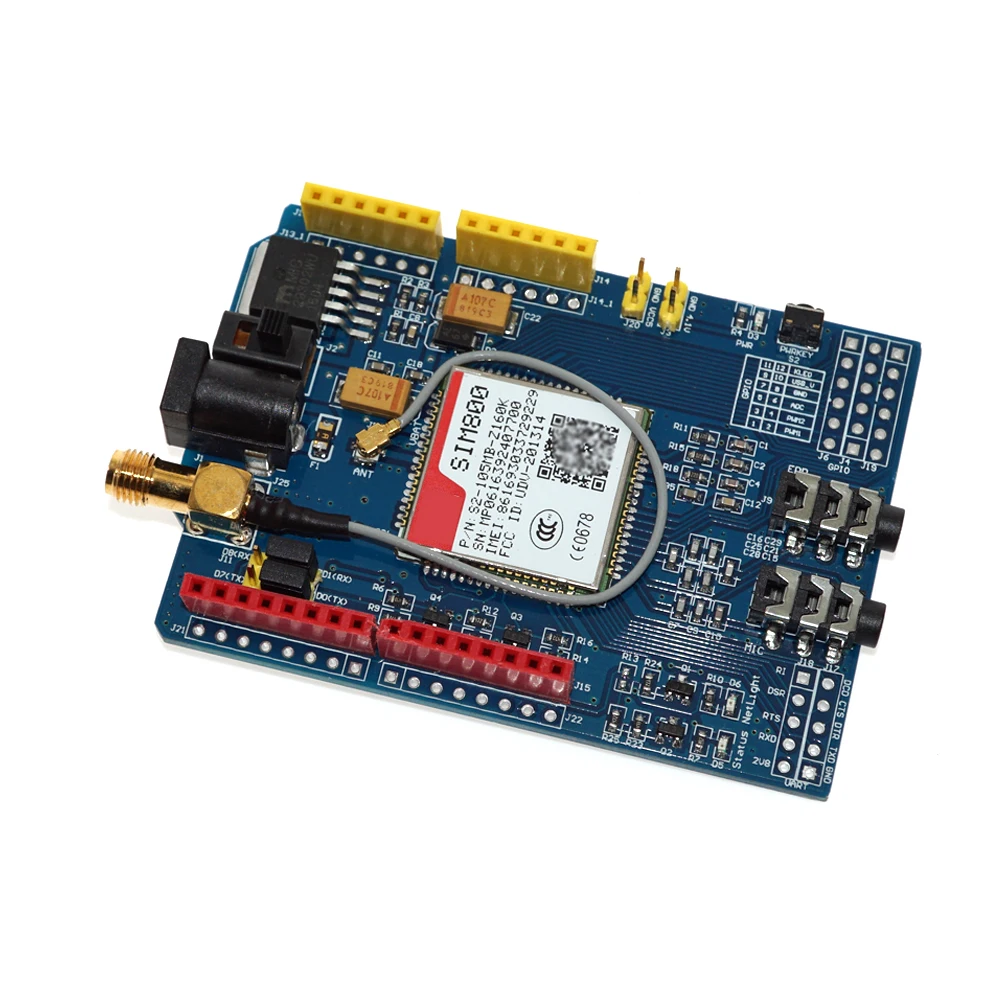

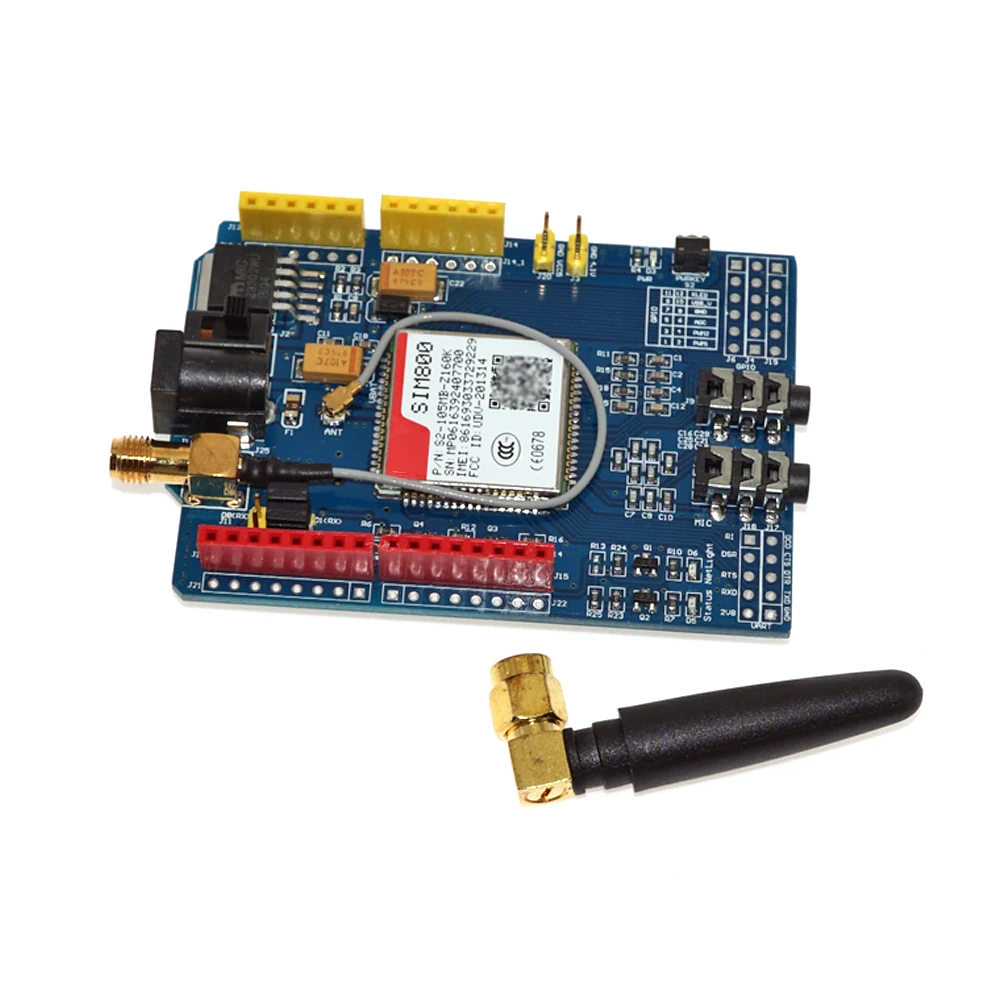

SIM800 Module GPRS Module Price GSM GPRS Development Board

Description:


This GPRS Shield is based on SIM900 module from SIMCOM and compatible with Ardu and its clones. The GPRS Shield provides you a way to communicate using the GSM cell phone network. The shield allows you to achieve SMS, MMS, GPRS and Audio via UART by sending AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands). The shield also has the 12 GPIOs, 2 PWMs and an ADC of the SIM800 module(They are all 2V8 logic) present onboard.

Features:
Quad-Band 850 / 900/ 1800 / 1900 MHz - would work on GSM networks in all countries across the world.

GPRS multi-slot class 10/8

GPRS mobile station class B

Compliant to GSM phase 2/2+

Class 4 (2 W @ 850 / 900 MHz)

Class 1 (1 W @ 1800 / 1900MHz)

Control via AT commands - Standard Commands: GSM 07.07 & 07.05 | Enhanced Commands: SIMCOM AT Commands.

Short Message Service - so that you can send small amounts of data over the network (ASCII or raw hexadecimal).

Embedded TCP/UDP stack - allows you to upload data to a web server.

RTC supported.

Selectable serial port.

Speaker and Headphone jacks

Low power consumption - 1.5mA(sleep mode)

Industrial Temperature Range - -40°C to +85 °C

Size:8.5x5.7x2cm(approx)

How to use:

Computer debugging USB - TTL can. This module powering: 5V-26V, 5V 2A power of recommendation. Plug in Ardu motherboard, power supply must be able to provide current 2A. The reason is that the current GPRS Shield boot and work up to the maximum peak current required 2A, but the USB port is unable to provide such a large current, it must be an external power supply equipment. Another road leads 3.7--4.5V pin power port for power lithium battery. Perfectly compatible serial ardu microcontroller. Compatible with 3.3 and 5V TTL serial microcontroller.

Ensure that your SIM card is not locked

GPRS Shield communication baud rate is preferably 19200 bps 8-N-1 (GPRS Shield default automatic matching baud rate)

Packing example:
1. Anti-static bag
2. Acrylic Case
3. Bulk package
4. Box package design according to your requirement (quantity > 1000PCS)
